Chimney Crown Repair and Replacement Explained

The chimney crown is the concrete slab at the very top of your chimney. Its job is to shed water off the top of the masonry, protecting the brick below and directing rain away from the flue opening. When a crown fails, water gets everywhere it shouldn’t — into the masonry, down between flue and brick, and eventually into your firebox or ceiling. Crown work is one part of our broader chimney masonry repair service.

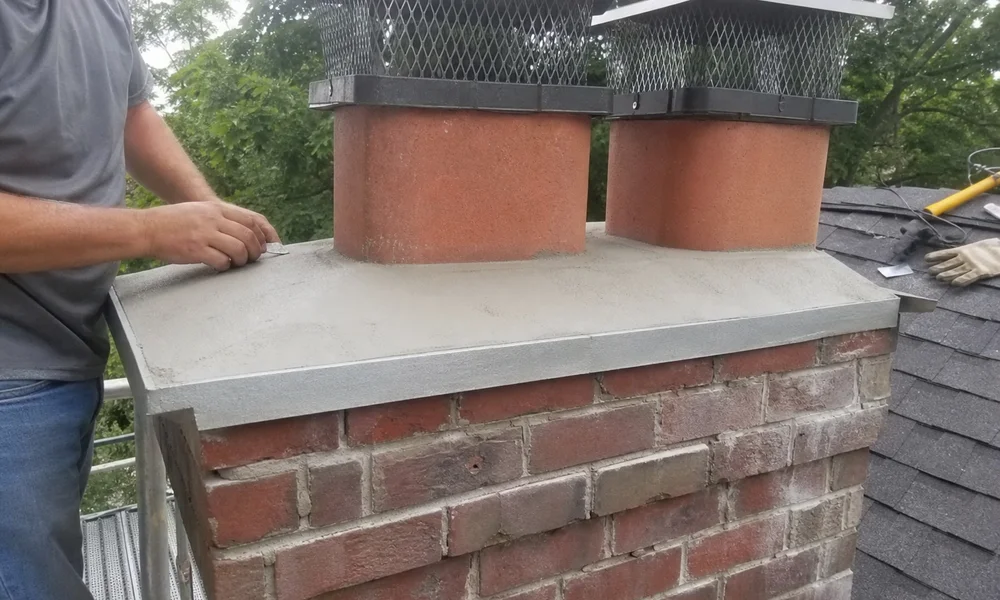

What a Properly Built Crown Looks Like

A crown built to last has three critical features most amateurs and rushed contractors skip:

1. An overhang. The crown extends 1–2 inches past the outer edge of the brick, so water drips off the crown edge instead of running down the brick face.
2. A drip edge. A groove or kerf cut into the underside of the overhang forces water to drip off instead of wicking back to the brick.
3. A proper concrete mix. True concrete (Portland cement + aggregate + reinforcing), not just mortar. Mortar-based “crowns” crack in 5–10 years.

Most crowns built before 2000 have none of these features. That’s why crown replacement is so common on Connecticut chimneys today.

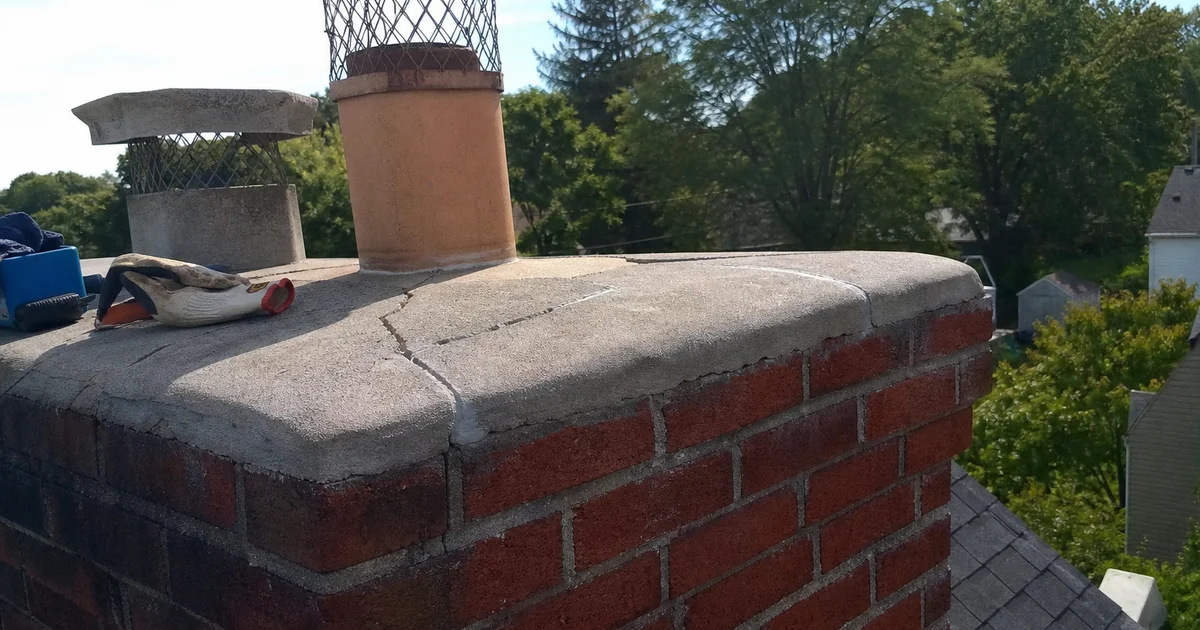

Why Crowns Crack

• Freeze-thaw damage — water absorbs into hairline cracks, freezes, expands, and cracks more
• Missing overhang lets water sheet down the brick, saturating everything
• Wrong material (mortar mix instead of true concrete) fails structurally
• No expansion joint between crown and flue tile causes cracking as they expand at different rates
• Poor curing during original construction leaves the concrete brittle

Repair Options

Option 1: Crown Sealer (Minor Cracks)

For hairline cracks (under 1/8 inch) on an otherwise sound crown, we apply an elastomeric crown sealer — a flexible acrylic coating that bridges cracks and sheds water. Typical cost: $300–$700. Life expectancy: 5–10 years.

Right choice when: crown is structurally intact, cracks are minor, chimney otherwise sound.

Option 2: Crown Rebuild (Failed Crowns)

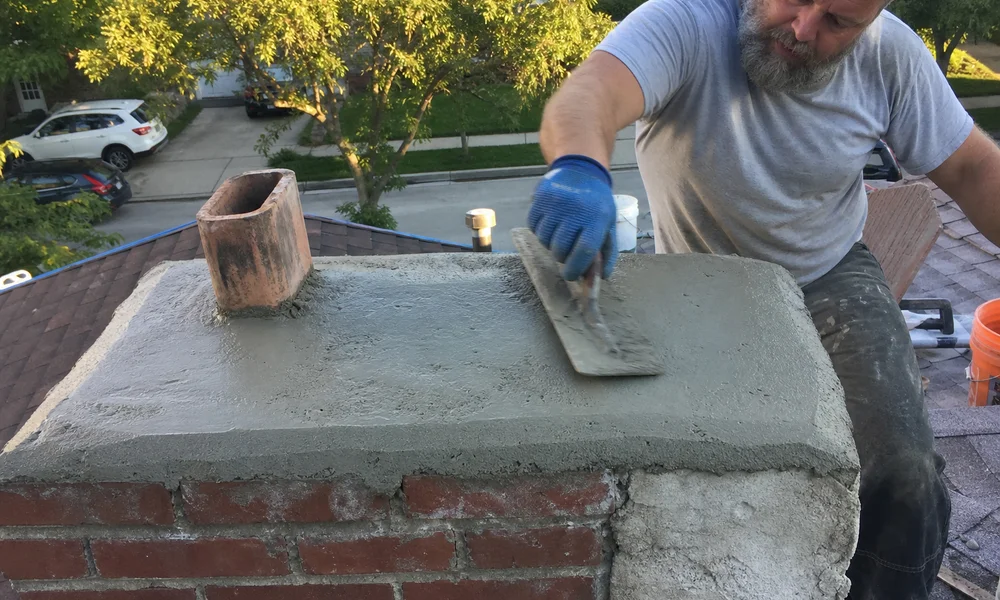

For badly cracked, crumbling, or missing crowns, we remove the old crown entirely and pour a new one with:

• Proper 2000+ PSI concrete mix
• Reinforcing rebar or fiber mesh
• 1.5–2 inch overhang past the brick
• Drip edge cut into the underside
• Expansion joint (silicone bond break) around the flue tiles

Typical cost: $900–$2,500 depending on size and access. Life expectancy: 30–50+ years.

How to Tell What You Need

• Hairline cracks visible from the roof, otherwise smooth crown → sealer
• Multiple cracks, cracks radiating from the flue tile, or missing chunks → rebuild
• Crown is flush with brick (no overhang) → rebuild strongly recommended
• Water already showing in the firebox after rain → rebuild + full leak diagnostic

When Crown Failure Causes Bigger Problems

A leaking crown lets water down the length of the chimney, causing:

• Efflorescence on the exterior brick
• Mortar joint failure requiring tuckpointing
• Interior firebox stains and damage
• Damper corrosion at the top of the flue
• Ceiling stains near the chimney chase

Fixing a $900 crown early prevents thousands in downstream damage.
